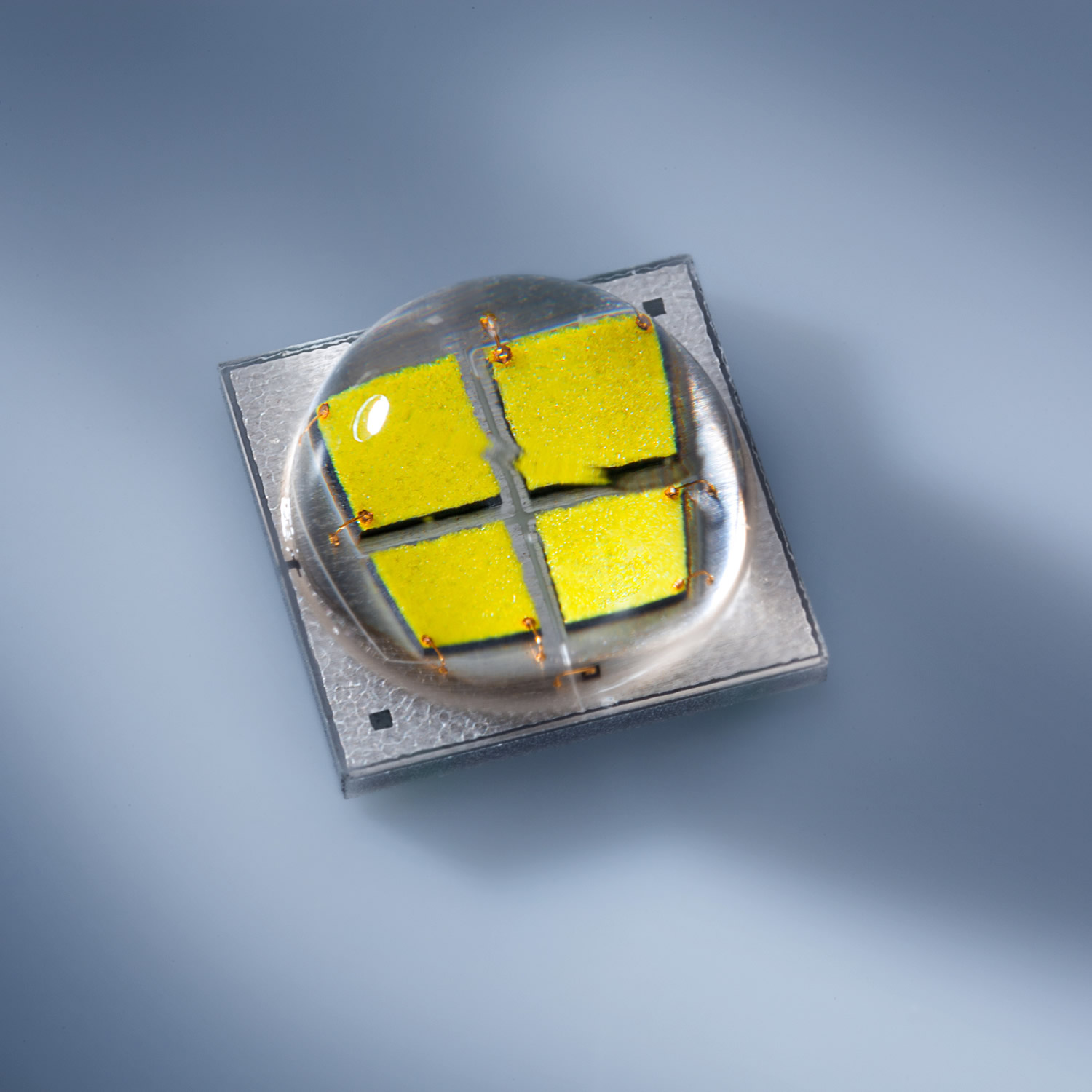

CREE MK-R High Power White LED 1665lm at 1250mA 6500K MKRAWT-00-0000-0D00J2051 12x12mm PCB
The Cree MK-R LED lights with an alert, daylight white light with 6200K, that we recommended for workplaces with some specific tasks where a boost in concentration, performance is desired. Such places could be laboratories, factories and hospitals. Another important application is agriculture particularly indoor farming.
With the luminous flux of up to 1665 lm one LED module is great for task lighting, spot lighting or portable lighting. Multiple LED modules can be used for linear lighting fixtures such as high bay lights, flood lights, street lights.
Product description
With our PCB LED modules you can easily harness the power of the high performance Cree LED for your application, without the need for reflow soldering or a sophisticated soldering station. The 10x10mm square PCB is made in Germany and has the highest quality, ensuring the best heat transfer and the longest LED lifetime. Solder pads are easy to connect with the basic soldering iron. The PCB LED is great for small projects, rapid prototyping or custom builds.
As early as in the year 2011 Cree had brought an LED to market that, under laboratory conditions, for the first time exceeded the 200lm/W benchmark. Now the MK-R-LED from the XLamp series allows this result even with 1W and 25°C. This was made possible thanks to the innovative SC3 Technology developed by Cree, which is already integrated in all new Cree XLamp LEDs. The SC3 platform includes a silicon carbide technology as well as several amplifications in the areas LED Chip Architecture and Phosphor Technology. In systems with only one LED the MK-R provides one of the best cross-unit colour consistencies of the entire LED industry. In systems with several LEDs the MK-R allows users the installation of only a few LEDs whilst maintaining the same luminous flux and colour consistency. The XLamp MK-R is designed for directed illumination applications and constitutes an expansion for applications requiring a high light yield, compact light source and wide range of colour temperature.
Features- reflow - JEDEC J-STD-020C
- electrically neutral heat dissipation
- maximum drive current: 1250 mA
- maximum junction temperature: 150 °C
- classified at 85 °C
- compatible with JEDEC J-STD-020C
SKU | 68652 |
---|---|
Weight brut (g) | 1.000000 |
LED SIZE (mm) | 5x5 |
LED Family | Cree MK-R |
LED Application | Spotlight, Downlight, High Bay, Par Lamp, Street Light, Flood Light |
LED Installation Package | 1x1 cm PCB |
Colour | Cold White |
Colour Temperature | 6200K |
Colour Rendering Index | 65 |
Viewing Angle | 120° |
Luminous Flux Typ (lm) | 624 |
Forward Current Typ. | 350ma |
Forward Voltage Typ (V) | 11.3 |
Power (W) | 3.96 |
Forward Current Max | 1250 |
Power Consumption Max. | 15.3 |
Product lifetime (h) | 50000 |
Efficacy (lm per W) | 158 |
Manufacturer Product Code | 68652 |
Brand | Cree (USA) |
Availability beyond shown stock: | YES |
